A wall bed that rubs, drops suddenly or refuses to stay open is usually suffering from a mismatch between its mechanism, moving weight, wall structure and available clearance. By the end, you will know which bed format to choose, what measurements and fixing details to demand, how to compare Mumbai quotations, and which tests should happen before first use.
Key takeaways
- Match vertical or horizontal fittings to the bed orientation.
- Check wall structure, fixing points and moving weight before ordering.
- Compare quotations by mechanism, load rating, installation and warranty.
- Keep pivots aligned and inspect fasteners to prevent operating failures.
How a wall-mounted bed mechanism actually works
The bed opens because its frame pivots on brackets fixed to a mounting rail, while a counterbalance controls the force required to lift and lower it. Vertical Murphy beds pivot along the side edges; horizontal wall beds use a different pivot geometry and cabinet width, so their fittings are not interchangeable.

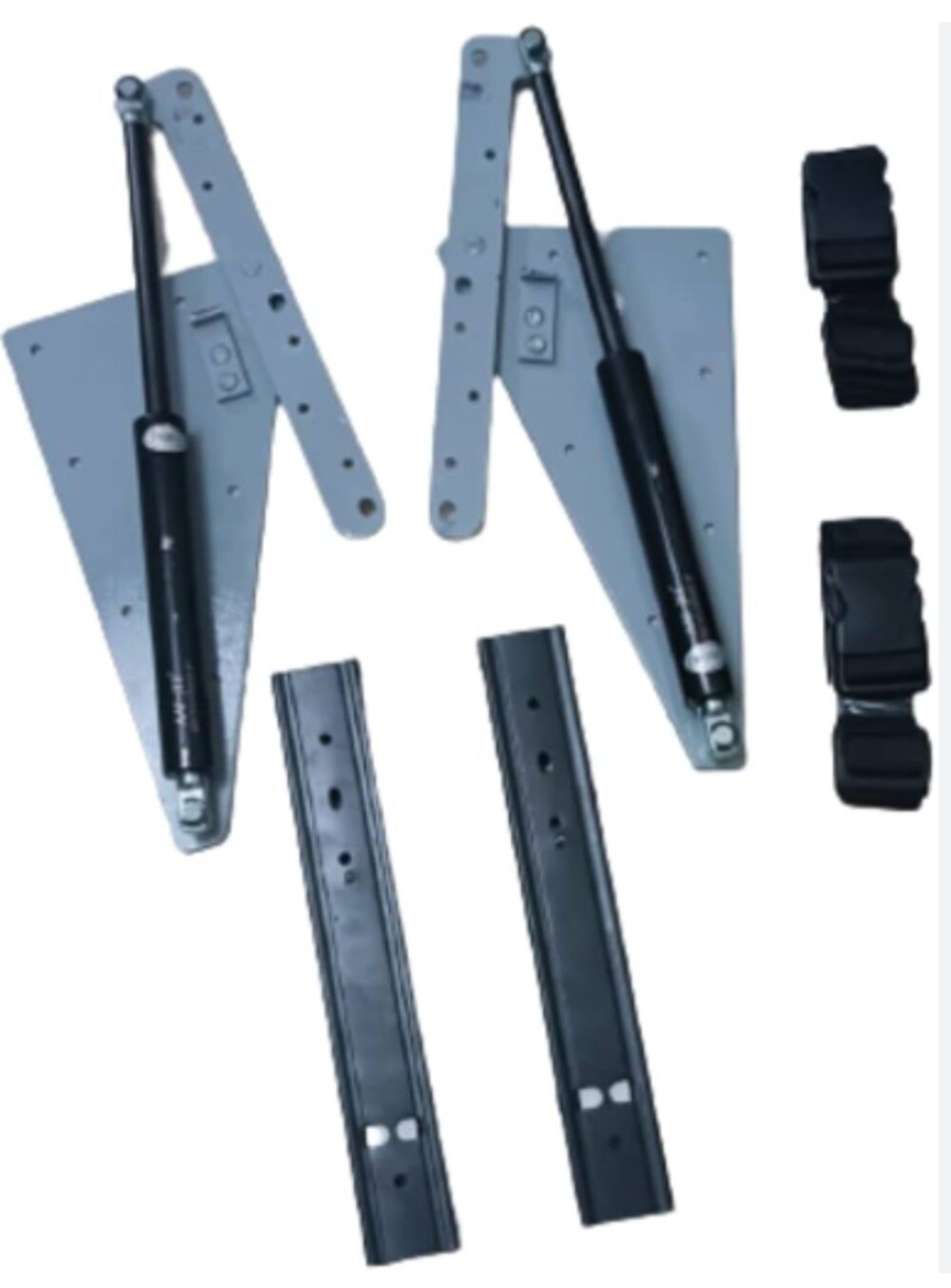

The working assembly usually includes:
- A steel bed frame and slatted platform that carry the mattress
- Pivot brackets or hinge plates that define the movement
- Gas springs, torsion springs or a spring pack matched to the complete moving mass
- Mechanical stops that set the open and closed positions
- Locking legs or another positive retention device for the open bed
- A wall rail, side brackets and anchors that transfer the load into the structure
Select the counterbalance using the mattress, platform, slats and frame together. A gas spring chosen only by bed width can make the bed rise sharply, drop unexpectedly or creep from its parked position.
The wall connection is structural, not ordinary cabinet fixing. A wall mounted bed fitting supplier in Mumbai should state the anchor type, diameter, quantity, embedment depth and required substrate strength for concrete, solid brick, hollow brick or AAC block.
A wall bed fitting supplier should also show the mounting rail, side brackets and any floor legs on the drawing. Gas springs assist movement; they must not replace a mechanical lock or stop.
Choose the bed orientation and verify the room structure
Choose a vertical Murphy bed when ceiling height and headroom are available; choose a horizontal wall bed when wall width exceeds usable depth or a vertical cabinet would meet a window, fan or low ceiling. These mechanisms are not interchangeable because their pivots, counterbalance force and cabinet dimensions differ.
| Option | Best choice when | Main limitation |
|---|---|---|
| Vertical Murphy bed | Floor-side clearance is limited and the wall is tall | Needs a taller cabinet and clear ceiling zone |
| Horizontal wall bed | A wide wall is available and height is restricted | Uses more wall width and side clearance |
| Fold-down bed | You need a simple hinged sleeping platform or occasional bed | Panel, legs and hinges need precise alignment |
| Hydraulic storage bed | You need under-bed storage and floor-hinged lifting | It does not clear the floor like a wall bed and loads the bed box and floor |
Before ordering, ask for the load-bearing bed frame, slatted base, front-panel mounting hardware, fold-down legs and counterbalance components. A low-priced kit containing only pivots cannot be matched safely from the mattress size alone.
Confirm the wall substrate on site: reinforced concrete, solid brick, hollow brick and AAC block need different anchors and embedment. Do not fix the mechanism to plasterboard, a thin partition skin or an unverified false wall.
Request the anchor type, number, diameter, embedment depth and minimum substrate strength; obtain structural advice when the substrate is uncertain.
Record these site checks before fabrication:
- Finished floor-to-ceiling height, wall plumb and skirting projection
- Closed cabinet depth, open-bed clearance and circulation route
- Window, switch, curtain, light and ceiling-fan sweep
- Coating or stainless-steel grade for fasteners and cut edges, since Mumbai humidity accelerates rust in trapped joints
Measurements, moving weight and installation checks
Measure the finished site, not the empty room. Record the mattress size, bed-frame dimensions, folded projection, open projection, side clearance and ceiling height before ordering folding bed hardware in Mumbai.
1. Measure the mattress length, width and thickness, then add the platform, slats, frame and front-panel dimensions. Confirm that the mattress remains inside the manufacturer’s permitted thickness range when folded.
2. Check all three clearances: the closed cabinet against skirting, switches, curtains and furniture; the open bed against walkways and ceiling-fan blades; and the folded mattress against the cabinet interior. Mark the fan and light sweep on the ceiling.
3. Weigh the complete moving load, including mattress, slats, platform, frame and bedding. Request the mechanism’s allowable mass range and adjustment procedure. A spring pack selected only by bed width can make the bed rise sharply, drop or refuse to stay open.
4. Inspect the wall with a plumb line and locate solid concrete, solid brick, hollow brick or AAC block. Reject plasterboard, a thin partition skin or an unverified false wall as the sole fixing surface. Obtain the required anchor type, quantity, diameter, embedment and substrate strength.
5. Match the mechanism’s fixing-hole pattern to the wall structure before drilling. Test the opening path without occupants, check every lock and pivot for smooth movement, and verify that the bed rests level when open.
Protect drilled steel from rust and specify the coating or stainless-steel grade, especially near coastal air, monsoon moisture or air-conditioning condensation. Avoid joints where dissimilar metals can trap water.
How to compare wall-bed prices and supplier quotations in Mumbai
A wall mounted bed fitting price in Mumbai is meaningful only when the quotation states the operating orientation: vertical or horizontal. These mechanisms are not interchangeable; pivot geometry, cabinet depth and counterbalance force change with the orientation.
| Quotation item | Complete quotation | Warning sign |
|---|---|---|
| Bed specification | Orientation, mattress size and thickness, frame, slats and total moving mass | “Queen-size mechanism” without weight limits |
| Mechanism scope | Pivots, gas springs or counterbalance, load-bearing frame, front-panel hardware, fold-down legs and locks | Pivots and springs only |
| Wall connection | Substrate, anchor type, number, diameter, embedment and required wall strength | “Fixing included” without anchor details |
| Site work | Measurement, delivery, installation, adjustment and operating test | Hardware supplied for self-installation |
| Final cost | GST, transport, fabrication, cabinet or panel work, installation and warranty | A low price that excludes these items |
Ask the wall bed fitting supplier to show the load path from the mounting rail into the wall, not merely the cabinet drawing. Solid concrete, brick and AAC need different anchors; plasterboard, a thin partition skin or an unverified false wall is not an adequate fixing point.
The quote must also record finished floor-to-ceiling height, skirting projection, open and closed clearances, fan sweep and nearby furniture. Confirm the allowable combined weight of the mattress, slats and frame, plus the gas-spring adjustment procedure.
Whether you compare Aruna Techno Industries with another supplier, request these details in writing before comparing the wall mounted bed fitting price in Mumbai.
Related product
 | Furniture Fittings Hydraulic Bed Fittings provide smooth and effortless lifting of the mattress, offering convenient access to under-bed storage. View product → |
Prevent operating failures after installation
A wall bed is unsafe to use if it rubs, drops, twists, or needs sudden force to open or close. Stop operating it until the installer checks the fixing, pivot, counterbalance and lock; repeated use can loosen brackets or release the bed unexpectedly.
| Symptom | Likely fault | Action |
|---|---|---|
| Uneven movement or one side leads | Incorrect spring orientation, pivot alignment or out-of-square cabinet | Stop; have both sides recalibrated and the cabinet checked for level and square |
| Rubbing against the cabinet | Mattress is too thick, front-panel clearance is inadequate or the frame is misaligned | Confirm the specified mattress and reset clearances |
| Bed drifts upward or falls | Counterbalance does not match the mattress and front-panel mass | Recommission it with the specified mattress and panel; do not add random weights |
| Movement from the wall | Wrong anchor, shallow embedment or non-structural substrate | Unload the bed and obtain a structural fixing assessment |
Use this handover checklist before accepting bed furniture fittings in Mumbai:
- Operate the bed with its specified mattress and front panel, not an empty frame.
- Ask for the anchor type, diameter, quantity, embedment depth and minimum substrate strength in writing. Plasterboard, a thin partition skin or an unverified false wall is not an acceptable fixing point.
- Check that the closed cabinet clears skirting, switches and curtains, while the open bed clears circulation paths and the ceiling-fan sweep.
- Inspect cut steel edges, spring ends and fasteners for coating damage or rust. Coastal humidity and condensation make untreated damage spread quickly.
- Keep the dimensional drawing, adjustment instructions, warranty exclusions and spare-part details with the installation record.
Frequently asked questions
How does a wall-mounted bed mechanism work?
The bed frame pivots on brackets fixed to a mounting rail, while springs, gas struts or another counterbalance controls lifting and lowering. Vertical and horizontal mechanisms use different pivot geometry and are not interchangeable.
What should you check before buying wall-mounted bed fittings in Mumbai?
Confirm the bed orientation, cabinet dimensions, wall construction, fixing points, mattress weight and full moving load. Check that the supplier provides installation instructions and the mechanism's load rating.
How should you compare wall-mounted bed fitting prices in Mumbai?
Compare the complete quotation rather than the hardware price alone. Check the mechanism type, included brackets and rail, load rating, delivery, installation, alignment, warranty and replacement-part terms.
How can you prevent a wall bed from failing after installation?
Use the specified fasteners, keep the mounting rail level, avoid exceeding the rated load and inspect pivots, springs or gas struts and frame fasteners at regular intervals. Stop using the bed if it binds, drops or shifts.
