Choosing a fixed glass connector starts with the joint, the glass build-up and the substrate—not with a product photograph. By the end, you will know how to specify the fitting, prepare the glass, check installation risks and compare quotations from a fixed glass connector supplier in Mumbai.
Key takeaways
- Choose the connector by joint type, not by appearance alone.
- Confirm glass thickness, hole diameter, edge distance and connector dimensions.
- Use protective washers and controlled tightening to prevent glass damage.
- Specify stainless steel grade, finish and quotation details before dispatch.
What a fixed glass connector does—and which joint you need
A fixed glass connector holds a stationary panel in a defined position through a discrete point connection. It is not a universal substitute for every glass hardware fitting. Choose the joint before requesting a quotation for an ss fixed glass connector in Mumbai.
| Connection | What it joins | Use |
|---|---|---|
| Wall-to-glass | Glass to masonry or framed wall | Panel edge meets a wall |
| Glass-to-glass | Panels at 90, 135 or 180 degrees | Fixed adjoining panels |
| Glass-to-floor | Glass to floor or base | Bottom restraint |
| Glass-to-ceiling | Glass to overhead structure | Top restraint |
A hinge carries a moving door and pivots around a pin. A patch fitting supports a door corner or edge and commonly works with hinges, locks or closers. A clamp grips glass, often without a drilled hole; a channel provides continuous support along an edge.
A spider fitting connects point-fixed glass panels through arms for façade or canopy systems.
Choose a fixed connector when the panel stays stationary and the design calls for a discrete point fixing. Do not use it as the sole basis for a tall, heavily loaded or continuously supported partition.
The engineer may need channels, setting blocks, silicone joints or concealed framing, and connector quantity cannot be chosen from panel area alone. Confirm the mounting direction and intended joint before discussing finish or price.
Specify the glass, holes and connector dimensions before ordering
A listing labelled only “SS glass connector” is not a usable specification. State whether the panel is 10 mm or 12 mm glass, then add any laminated build-up, interlayer type and total finished thickness.
- Request a dimensioned drawing showing the connector body, base, cover, projection, plate dimensions, hole diameter, hole pattern, screw positions, glass contact area and permissible load.
- Confirm the required edge distance, corner radius and clearance from adjacent holes. Use the connector manufacturer’s template and the glass processor’s limits; do not estimate dimensions from a product photograph.
- Confirm the approved glass type: toughened, laminated, annealed, or a stated combination. Most architectural point connectors use factory-processed holes in toughened or laminated safety glass.
- Send every hole, cut-out and edge detail to the processor before toughening. Toughened glass cannot be drilled, cut or edge-notched afterward; attempting it on an installed panel can cause sudden breakage.
- Ask whether the connector is solid or hollow, whether the visible cover conceals a separate base, and whether the quoted load applies to the complete installed assembly rather than the metal body alone.
Ordinary annealed glass is not automatically compatible. Double glazing needs a separate edge and spacer solution, not a standard point connector. These checks separate a suitable stainless steel glass connector in Mumbai from a visually similar fitting that cannot be fabricated or safely loaded.
Prepare the panel and install the connector without damaging glass
Mark connector positions on the approved glass-processing drawing before fabrication, then check every dimension against the site measurement. A mistake discovered after toughening can make the panel unusable.
1. Send the processor the connector template and confirm the hole diameter, edge distance, corner radius, hole pattern and cut-out dimensions. Drill holes, form corner cut-outs and finish edges before toughening. Never drill an installed tempered panel; the glass can break suddenly.
2. Inspect each processed hole and edge. Remove chips, sharp edges and grit, and protect the hole from breakout during handling. Debris under the fitting creates a high point load.
3. Inspect the substrate before drilling. Choose anchors for the actual material: concrete, solid masonry, hollow block, steel and framed walls require different fixing methods. An anchor suitable for concrete is not automatically suitable for a hollow block or steel frame.
4. Dry-fit the base, then install the supplied EPDM, neoprene, nylon or equivalent gasket and spacer between stainless steel and glass. Use setting blocks or temporary supports to align the panel. No screw, washer or metal cover may touch the glass directly.
5. Tighten fasteners in stages to the manufacturer’s torque value. Over-tightening crushes the gasket and concentrates stress; under-tightening permits slip, rattling or movement.
6. Stop if the supplier has not provided a hole template, gasket specification, anchor guidance or torque instruction. Complete alignment checks before fitting covers, applying sealant or connecting adjacent panels.
Match the steel finish to Mumbai exposure and the partition’s duty
Choose the steel grade and finish for the site exposure, but do not treat either as proof that the partition is structurally adequate. Grade 304 may suit an interior away from salt and persistent moisture.
For coastal Mumbai, chloride-bearing air or frequent wet cleaning, start the specification discussion with 316 or 316L. Its molybdenum content improves chloride resistance, but it is not corrosion-proof. Request the grade designation, visible finish—polished, satin or brushed, PVD-coloured, or powder-coated—and the finish or corrosion warranty.
Clean the fitting with a mild non-chloride cleaner and a soft cloth, then rinse away residue. Keep hydrochloric-acid cleaners, chloride-bearing cement or grout deposits, steel-wool particles and carbon-steel grinding dust away; these contaminants can stain or initiate corrosion.
Check the partition duty separately:
- Connector spacing, panel height and width
- Substrate material and anchor type
- Wind and impact exposure
- Guarding or balustrade loads
- Need for continuous floor or ceiling support
A decorative stainless body does not make the assembly fire-rated, acoustic-rated or structural-glazing-rated. Claim those performances only when the complete glass, sealant, framing and connector system has the relevant tested classification. Larger panels may need channels, setting blocks, silicone joints or concealed framing; do not choose connector quantity from panel area alone.
Use a Mumbai supplier quotation checklist before dispatch
Before you buy ss glass connector in mumbai, give a fixed glass connector supplier in mumbai a complete brief rather than a product photograph.
1. State the joint type, 10 mm or 12 mm glass thickness, laminated glass build-up and interlayer, hole drawing, mounting surface, connector projection, finish, quantity and installation location.
2. Request a physical sample or dimensioned drawing showing the stated glass-thickness range, hole diameter, edge-clearance requirements, fixing direction, steel grade such as 304 or 316/316L, gasket and screw materials, replacement-gasket availability, anchor compatibility and the manufacturer’s torque or installation sheet.
Check whether the fitting is solid or hollow and whether a visible cover conceals a separate base.
3. Confirm that the quotation includes the base, cover, screws, wall plugs or anchors, gaskets, spacers and fabrication template. Low-priced listings often include only the visible fitting. Ask whether the connector is approved for toughened or laminated glass, then obtain written confirmation before sending glass for processing.
Aruna Techno Industries can be useful when one project also needs architectural hardware, profiles, fittings or sealants, but judge the connector against the approved drawing and installation requirements, not the supplier name.
Reject a visually similar part if its glass thickness, fixing direction, hole pattern or anchor system is unconfirmed. Before dispatch, match the sample and documents to the approved schedule, then record the batch or part reference so replacement fittings and gaskets remain consistent.
Related product

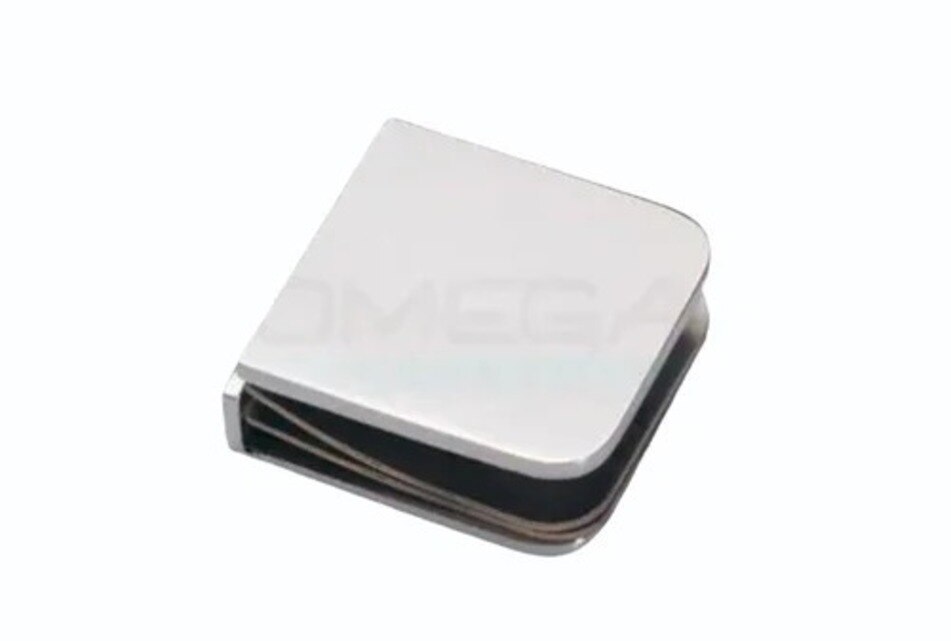

 | glass connector We are a unique entity in this industry, actively engaged in offering a premium quality array of SS Fixed Glass Connector. View product → |
Frequently asked questions
What does a fixed glass connector do?
It holds a stationary glass panel in a defined position through a discrete point connection. Select the connector according to the joint required, such as glass-to-wall, glass-to-glass or glass-to-post.
What should you specify before ordering a fixed glass connector?
Provide the glass thickness, hole diameter, hole position, edge distance, connector dimensions, joint type and required load or duty. Confirm these measurements before requesting a quotation.
How do you install a fixed glass connector without damaging glass?
Check the drilled hole and edge condition, use the specified washers or gaskets, align the parts without forcing the panel, and tighten gradually to the connector maker’s torque instruction.
Which stainless steel finish suits Mumbai glass partitions?
Choose the steel grade and finish according to exposure and use. Interior dry areas need a different corrosion-resistance decision from humid, coastal or frequently cleaned locations; compare brushed, satin and polished finishes with the supplier.
What should a Mumbai supplier quotation include?
Ask for the connector drawing, steel grade, finish, glass compatibility, hole dimensions, quantity, included washers or gaskets, lead time, packing details and replacement terms before dispatch.
