A workable uPVC hardware order starts with the profile system, sash load and opening configuration—not the phrase “uPVC window bearing.” By the end, you will have a specification for compatible hardware, a method for checking an existing window, and a supplier checklist that reduces fabrication and site delays.
Key takeaways
- Define every opening by profile, sash size, handing and hardware function.
- Match rollers, bearings and locks to the sash load and profile system.
- Photograph existing hardware and record dimensions before ordering replacements.
- Compare suppliers by stock, product evidence, adjustment support and delivery reliability.
Specify the Complete Hardware Set Before You Request a Quote
A quote is complete only when each shutter is defined as an assembly, not when it says “standard hardware.” Your uPVC window fabrication requirements must identify the profile system, sash dimensions and hardware for every opening.
- Record the profile-system brand and series, groove width and axis, sash rebate height, backset, faceplate width, corner-drive dimensions, opening configuration, sash weight, and reinforcement specification. Do not assume a 16 mm groove is universal.
- List the operating parts: rollers or bearings, uPVC handles, espagnolette rods and locks, corner drives, keeps, hinges, stays or friction stays, and restrictors where required. State roller diameter, single-wheel or tandem type, fixed or adjustable design, mounting-hole pattern, spindle length and adjustment method.
- Add the installation parts: screws matched to the reinforcement, glazing blocks, gaskets, drainage components and compatible sealant. Confirm the drainage route stays open; blocked outer-chamber drainage can cause leakage that looks like a lock failure.
- State the quantity per shutter and the exposure. Ask for corrosion classification or test basis for concealed steel, screws, friction stays and fittings in wet or poorly ventilated locations.
Give this schedule to a uPVC window hardware supplier Hyderabad fabricators use, then request complete-window test evidence where air permeability, watertightness, wind resistance, operating force or acoustic performance matters. A hardware catalogue alone cannot prove those results.
Match Rollers, Bearings and Locks to the Profile and Sash Load
Choose hardware by the exact profile system and finished sash load, not by the window’s outside dimensions. Confirm the groove width, groove axis, sash rebate, backset, faceplate width, spindle length, opening configuration and corner-drive dimensions before ordering. A 16 mm hardware groove is common, not universal.
| Hardware option | Load and fit implication | When it applies |
|---|---|---|
| Single-wheel roller | One contact point; lower load capacity and less stability | Light sliding sashes with a compatible track |

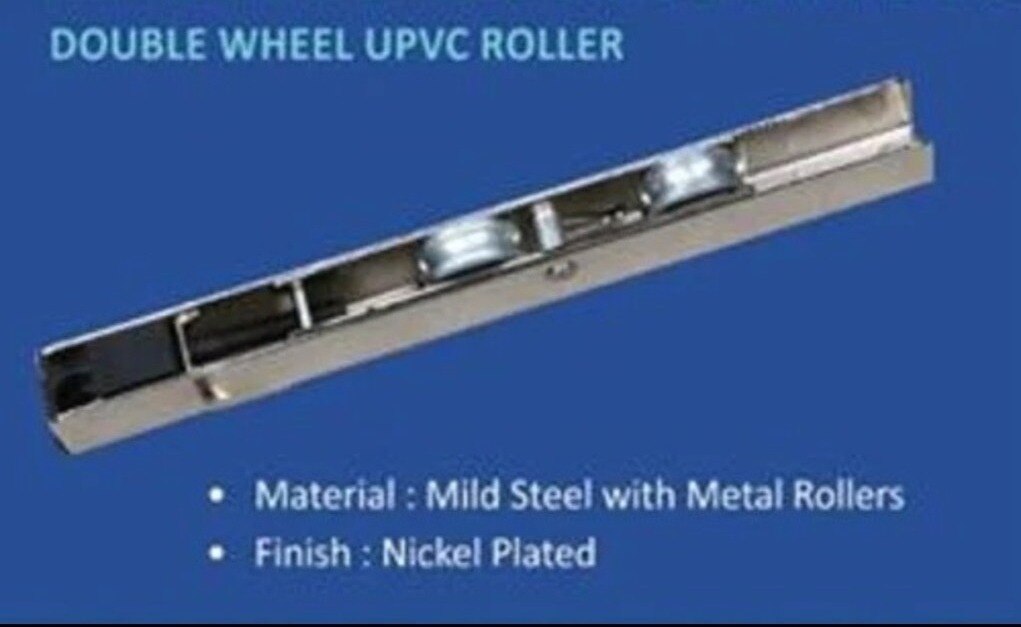

| Tandem roller | Two wheels spread the sash load and improve tracking | Wider or heavier sliding sashes |
| Nylon wheel | Quiet running and track protection, but limited resistance to high loads or heat | Light-to-medium indoor applications |
| Metal wheel roller | Higher load tolerance, with more noise and track wear if misaligned | Heavy sashes when the track and corrosion protection suit it |
A bearing is unsuitable for a heavy balcony sash when its rated load, mounting holes or track geometry does not match the system. Do not substitute a nominally similar roller, lock or multipoint gearbox; mismatched keeps and rod positions cause binding and incomplete locking.
- Obtain the profile maker’s reinforcement table for sash size, wind exposure, hardware loads and fixing points.
- Separate ratings for single glazing, laminated glass and insulating glass units; added glass mass can exceed hinge or stay capacity.
- Specify glazing blocks by glass thickness, hardness and size. They transfer glass weight and prevent sash distortion and seal failure.
- Request complete-window test evidence for air, water, wind and operating-force performance; a hardware catalogue alone proves none of these.
Identify the Existing Window Before Ordering Replacement Parts
A correct replacement starts with the window’s profile system, not the word “uPVC.” Record the profile brand and series, opening direction, sash width and height, and the approximate sash weight before requesting parts.
- Handle type, spindle length, and screw spacing between fixing holes
- Lock backset, faceplate width, gearbox height, and espagnolette rod length
- Groove width, groove axis, rebate height, and corner-drive dimensions
- Track width, roller diameter, roller count, and roller housing dimensions
- Keep positions and the distance from the sash edge to each fixing point
Do not assume a 16 mm hardware groove. Confirm the actual groove geometry against the profile-system supplier’s drawing. A small difference can make the lock bind or leave the keeps out of alignment.
2. Photograph the complete sash, hinge or roller edge, handle, lock faceplate, corner drive, keeps, and each roller housing. Add a ruler or tape measure in close-up images, and photograph the hardware label, adjustment screw, and fixing pattern.
3. For a uPVC roller replacement, remove one roller only after recording its orientation and adjustment position. Send the roller, housing, wheel type, mounting-hole pattern, and sash dimensions together; a visually similar bearing can still fail under a heavy balcony sash.
Include the damaged part beside a scale, plus the profile cross-section if available. These records let the supplier match the cam profile, fixing points and opening configuration instead of guessing from a generic photograph.
Install and Adjust the Hardware Without Distorting the Frame
Fit each component to the exact profile system, then adjust it with the sash glazed and the frame fixed square. Use the profile maker’s fixing points and reinforcement table; overtightened screws can pull the uPVC wall inward and create binding.
Use this fitting sequence:
- Install rollers or bearings in the specified positions, keeping the sash level on its track. Complete the uPVC window roller adjustment so the sash meets the seals evenly without lifting the handle.
- Fit the lock gearbox, rods and multipoint lock keeps to the supplied template. Check meeting stile alignment before tightening the keeps; a few millimetres of error can make the handle stiff.
- Fix friction stays or hinges without twisting the sash. Open and close the window while tightening, then set the restrictor or opening stop so the stay does not carry an unintended side load.
- Clear every drain slot, end cap and outer weep path. Correct uPVC window drainage depends on open chambers; do not fill drainage holes with sealant or foam.
After glazing, operate the handle through its full travel several times. The sash must compress the gasket uniformly, lock without force and remain stable when opened. If the handle needs lifting, loosen the keeps and reset alignment before increasing compression.
Record the adjustment position and supply matching screws, replacement rollers and keep dimensions for service work. A hardware catalogue cannot prove the finished window’s air, water or wind performance; request complete-window test evidence where the project requires it.
Compare Hyderabad Suppliers on Stock, Evidence and Site Support
Confirm more than a catalogue photograph before choosing a uPVC hardware supplier Hyderabad fabricators can rely on. Ask whether the supplier stocks the complete set for each shutter, including rollers or bearings, handles, locks, espagnolette rods, stays, hinges, corner drives, keeps, screws, drainage parts, gaskets and compatible sealants.
| Supplier check | Evidence to request | Risk if absent |
|---|---|---|
| Stock continuity | Current quantities, dispatch lead time and replacement-part availability | One missing keep, screw or roller can stop installation |
| Compatibility | Profile brand and series, groove width and axis, rebate height, corner-drive dimensions and mounting pattern | A nominally “16 mm” item may not fit |
| Performance basis | Load rating for the actual sash and glazing; corrosion classification or test basis | Heavy laminated or double-glazed sashes can overload standard stays or hinges |
| Site support | Installation drawings, adjustment instructions, sample approval and technical contact | Fitters lose time correcting poor alignment or unsuitable parts |
Before issuing a purchase order, confirm these commercial and technical points:
- State sash width, height, weight, glazing type, track count, roller diameter and required quantity per shutter.
- Request the profile maker’s reinforcement table; do not accept a substitute steel section because its thickness looks similar.
- Check the minimum order quantity, delivery split, warranty process and availability of service parts.
- Require a GST invoice with item codes matching the approved samples.
- For a project, request complete-window test evidence for air permeability, watertightness, wind resistance, operating force or acoustic performance; a hardware catalogue cannot prove these properties.
Aruna Techno Industries can be included in the comparison when you need one supplier discussion to cover hardware, profiles, fittings and sealants rather than sourcing each item separately.
Related products

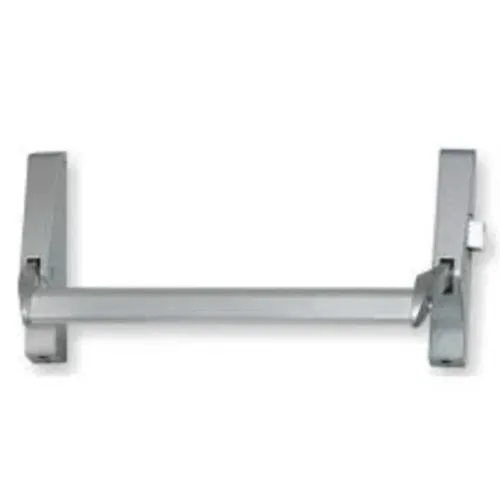

 | UPVC Window & Door Hardware UPVC Dooe Hardware View product → |
 | UPVC Window & Door Hardware UPVC Window Bearing is used for big window mainly used in balcony. View product → |
Frequently asked questions
What information should you provide before requesting a uPVC window hardware quote?
Provide the profile system, opening dimensions, sash dimensions, handing, required functions and a hardware list for each opening.
How do you match uPVC window rollers, bearings and locks?
Match them to the profile groove, sash load, dimensions, locking-point layout and the hardware manufacturer’s compatibility details.
What should you record before ordering replacement uPVC window parts?
Photograph the installed hardware and record its dimensions, fixing-hole positions, spindle size, locking-point locations and window handing.
How can you compare uPVC window hardware suppliers in Hyderabad?
Check stock availability, batch or product identification, technical evidence, replacement compatibility, delivery commitments and installation or adjustment support.
